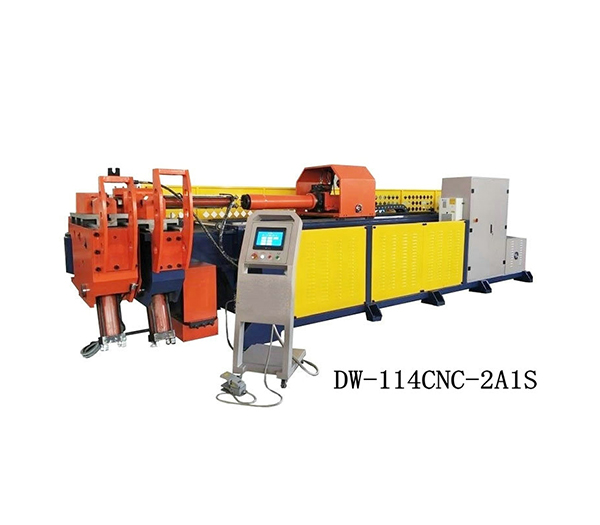

Key Specifications | DW38CNC | Notes | |
maximum bending diameter × wall thickness | Φ114mm × 8mm | 1. Minimum bending radius according to pipe diameter | |
maximum bending radius | R600mm | ||
minimum bend radius | R90mm | ||
maximum bending angle | 190 ° | ||
maximum feed length | 4000mm | ||
Feeding | direct- pinch | ||
pace of work | bending speed | Max 30 ° /s | |
Rotary speed | Max 160 ° /s | ||
feeding rate | Max 800mm /s | ||
working precision | bending precision | ± 0.1 ° | |
Rotary precision | ± 0.1 ° | ||
feeding accuracy | ± 0.1mm | ||
data input | 1. coordinates (X. Y. Z) | ||
bending mode | servo | ||
Rotary servo motor power | 2w | ||
feeding servo motor power | 5kw | ||
elbow pipe to allow the number of | 1. 12 | ||
parts store a few | 1. 330 | ||
hydraulic motor power | 22kw | ||
system pressure | 12 Mpa | ||
machine size | 6700 x 1350 x 1650mm | ||
Weight | 7000kg | ||
